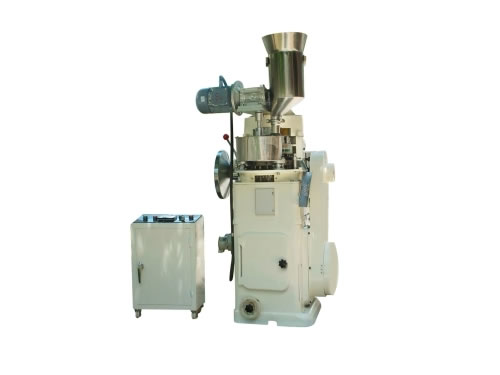

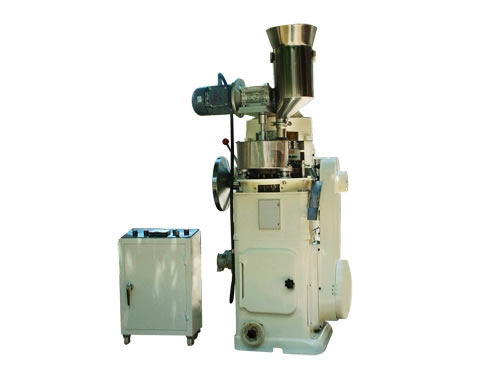

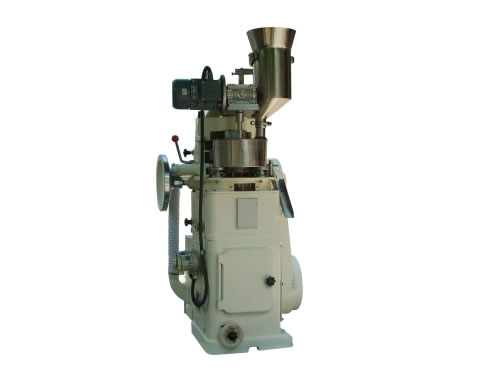

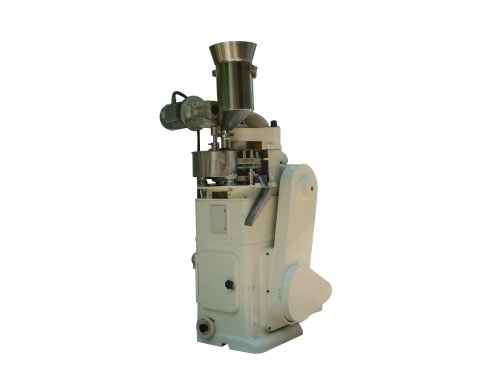

ZP15C/ZP15Y Salt Tablet Press

ZP15C/ZP15Y Salt Tablet Press

Description
Salt tablet press, just as the name suggests, is usually employed to turn granular or powdery feedstock into salt blocks. It is able to produce 15 tablets in one revolve. And the turret speed ranges from 15 to 40r per minute. Currently, manual tablet machine wins wide applications in many industries such as chemical engineering, pharmacy, food and electronics industry.

Features

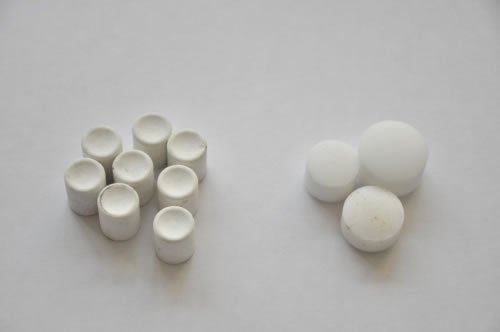

1. Salt tablet press is exclusively used in making salt tablets (diameter of 25 mm and thickness of 20 mm).
2. With a frequency control device, manual tablet machine is easier and can be operated manually.
3. It is quite productive, since its production capacity can reach 13500 to 25200 pcs per hour (ZP15C) and 20000 to 30000 pcs per hour (ZP15Y).

Parameters of Salt Tablet Press

Model ZP15C ZP15Y
Dies (Sets) 15
Max. Pressure (Kn) 60
Max. Dia. of Tablet (mm) 25 26
Max. Depth of Filling (mm) 30 15
Thickness of Tablet (mm) 5-15 6
Turret Speed (r/min.) 15-28 20-40
Production Capacity (Pcs./hr.) 13500-25200 20000-30000
Motor Power 3.0Kw / 380V / 50Hz / 960r/min. 2.2Kw /380V /50Hz / 960r/min.
Overall Size of Manual Tablet Machine (mm) 880 × 750 × 1600
Net Weight (Kg) 560

Payment, Package and Shipping
1. Available types of payment are T/T, L/T and Western Union
2. Salt tablet press should be packed as regulated (Export packing standard).
3. Manual tablet machine is expected to be delivered by expressage, ocean, air land and other ways.

Application

With rich experience, professional engineers and technical personnel, Shanghai Lanteky Pharmaceutical Machinery has developed over 10series of 40 models of products (for instance, salt tablet press). The company also strives to provide its customers with comprehensive services ranging from machine selecting, technical designing to technique training.
