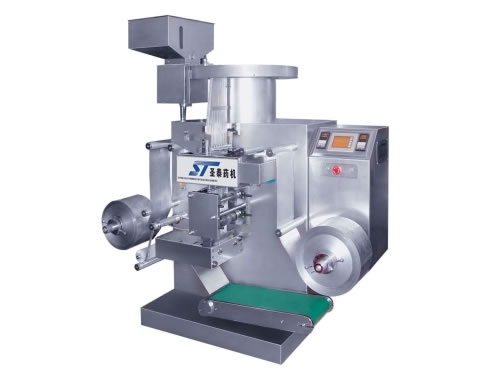

Automatic Aluminum Packing Machine

Automatic Aluminum Packing Machine

Introduction
Automatic aluminum packing machine usually wraps round tablets, capsules and specially shaped food and health care products with blister-aluminum and plastic composite membranes. It is durable and can run smoothly. Besides, this wrapping machine is compact-structured and complete in functions. Therefore, it is popularly used in pharmaceutical and foodstuff industries.

Features
1. Automatic aluminum packing machine is productive with a production capacity of 20,000 to 60,000 pieces per hour.
2. The diameter of hot pressing wheel ranges from 110mm to 140mm.
3. Wrapping machine can effectively screen out powders and fragments in the drugs with the use of vibrating feeding.
4. Automatic aluminum packing machine can automatically count, slit, cut off slitter edges and print batch numbers.
5. Electronic detection signals and PLC programme are adopted in punching which help to change granule numbers in the vertical section. And this enables users to change the drug layout without altering dies. Thus, clients save lots of time.
6. Automatic aluminum packing machine can be equipped with cursor tracking system and ink roll printing device as required. These can improve the quality of products and make printing patterns more neat and the printing lot number more clear.

Main Parameters of Wrapping Machine

Roller Rotation Speed (r/min.) 7-5 (automatically rotate and need not shift gear.)
Production Capacity (ten thousand pieces/h) 2-6
Max. Package Width (mm) 165 (can also be designed separately as required.)
Medicinal Polythene (mm) 0.05-.1 × 150
Aluminum Compound Film (mm) 0.08 × 150
Reel Bore Diameter (mm) 40-5
Heater Power (Kw) 1kw × 2
Supporting Main Power (Kw) 0.55
Air Pressure (Mpa) 0.4
Overall Dimension (mm) 1450 × 600 × 1670 (L×W×H)
Weight (Kg) 600
Air Flow (m³/min) ≥0.1

With about twenty years’ history, Shanghai HMachinery is much more experienced in manufacturing tablet press, powder screen, milling and sugar coating machine, and automatic aluminum packing machine, to name a few. Our company, since its foundation, has spared great efforts to provide all customers with products of low price and high quality. To realize these, the company attaches importance to innovation and development. And the company also imports and utilizes advanced technologies. Moreover, HMachinery learns advanced management experience from overseas companies.
