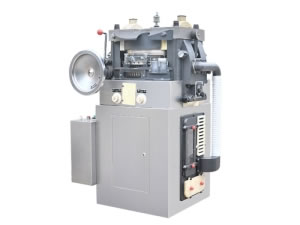

ZP41B Rotary Tablet Press

ZP41B Rotary Tablet Press

Introduction
ZP41B rotary tablet press is basically a facility that manages to form granulated things into tablets. It is a principal apparatus used in pharmaceutical, chemical and food industries. Manual pharmaceutical machine is particularly suitable for mass production of medicine, candy and calcium tablets of round form.

Features
1. ZP41B rotary tablet press has high production capacity of 185,000 pieces per hour.
2. It can be placed vertically.
3. Stainless steel is employed on the surface of rotary tablet press and internal table. Specially disposed, the turret surface can stay lustrous and avoid cross contamination, which meets GMP requirements.
4. All controlling and operating elements of manual pharmaceutical machine are arranged properly.

Parameters of Rotary Tablet Press

Model ZPF41
Dies (Sets) 41
Standard of Punches and Dies ZP/IPT
Max. Pressure (Kn) 80
Max. Dia. of Tablet (mm) 13
Max. Depth of Filling (mm) 20
Max. Thickness of Tablet (mm) 8
Rotation Speed (r/min.) 38
Capacity (Pcs./hr) 185000
Motor power of Manual Pharmaceutical Machine 5.5Kw/ 380V/50Hz
Dimensions (L × W × H)(mm) 1200 × 900 × 165
Net Weight (Kg) 2200

Payment, Package and Shipping
1. T/T, L/T and Western Union are available types of payment.
2. Rotary tablet press should be packed as regulated.
3. Optional types of shipping are by express, by sea, by air, by land, etc.

Being an experienced rotary tablet press maker, Lanteky Machinery has always been committed to innovation. Thereby, the company is capable of providing a comprehensive product chain of pharmaceutical machines. With the accumulation of about 20-year service experience, this company can help clients deal with many hard-to-solve problems they encounter in using rotary tablet press. Moreover, our company also provides local network services to meet more clients’ need as well.
