HLSG Series Mixer Granulator

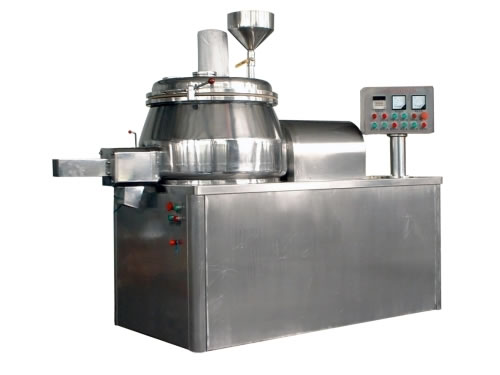

HLSG Series Mixer Granulator

Introduction
Mixer granulator is featured by high efficiency, good performance, low consumption and non-pollution. It is a new sophisticated machine that conforms to GMP standard. And the granulator is able to finish independently mix humidifying and pelleting. Due to these, this pharmaceutical mixing granulation equipment is adapted for food, chemical and pharmaceutical industries.

Characteristics
Lanteky mixer granulator is characteristic of:
1. Conical material groove: Materials can be mixed uniformly.
2. Pneumatic automatic discharge: Reliable.
3. Pneumatic cylinder covers lifting: Easy operation.
4. Frequency control of cutting knife: The granule diameter can be controlled easily.
5. Manual control of speed: You can find out the technological parameters about pharmaceutical mixing granulation equipment.
6. Touch screen: It enables operator to input set point and control process.
7. Sealed axis of rotation: This prevents mixer granulator from dust adhesion.
8. Water-spraying cleaning rotating shaft: Time-saving and easy.
9. Material slot interlining jacket cooling: It improves the quality of granules.
10. Stainless steel material: It is used to keep mixer granulator glossy and free from corrosion.
11. Appropriate height of discharge outlet: It can be used with drying machinery.

Main Technical Specifications
These parameters serve as reference for selecting appropriate mixer granulator.

Model / Specifications HLSG10 HLSG50 HLSG100 HLSG200 HLSG300 HLSG400
Material Groove Total Volume (Dm) 10 50 100 200 300 400
Feeding Quantity (Kg) 1-3 10-22 15-40 60-100 100-130 130-160
Max Inside Diameter (mm) 294 500 640 800 860 980
  Driving System Rotating Speed of String Paddle (r.p.m) 30-500 30-500 20-300 25-500 10-150 10-150
Power of Motor (Kw) 2.2 5.5 11 15 22 22
Rotating Speed of Cutter (r.p.m) 300-3000
Power of Motor (Kw) 0.8 1.5 4 4 7.5 7.5
Dimensions     Weight of Pharmaceutical Mixing Granulation Equipment Length (mm) 1550 1980 2200 2500 2400 2500
Total Height (mm) 1500 1500 1560 2000 1685 2240
Height of Discharge Outlet (mm) 700 700 700 900 800 800
Width (mm) 550 760 870 1400 100 1200
Weight of Machine (Kg) 260 400 1540 1100 1800 2100

Shanghai Lanteky, founded in 1997, has been specializing in supplying pharmaceutical machines, including granulation machine (e.g. mixer granulator), oven, grinder, pulverizer, tablet press, etc. Our company aims to providing clients with quality products and services. Therefore, the company imports foreign advanced techniques and skills, strengthen innovation and combine inspirations with practical technology. Besides, our company establishes a comprehensive customer service system ranging from professional consulting to technical training. For more information, please visit our website or contact us directly.
