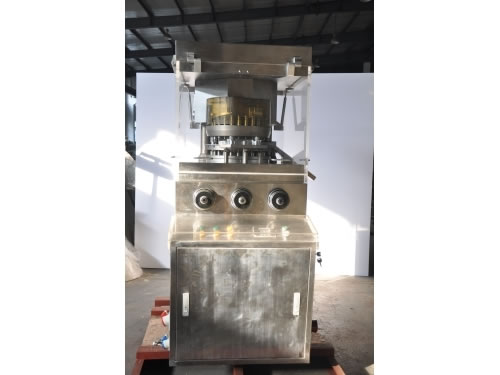

ZPG24 Herbal Tablet Press
Description
Herbal tablet press is a single pressure type machine that rotates automatically and presses materials continuously. Basically, it is mainly used to compress difficult molding materials, including Chinese herbal medicine and things of high fiber content. Apart from that, this rotary tablet press can make round, annular and special-shaped tablets.
Characteristics
1. Herbal tablet press is equipped with big pre-pressure device and meets GMP requirements.
2. The outer casing of rotary tablet press is enclosed and covered with stainless steel material. All parts that contact with materials are covered with stainless steel coating or non-poisonous, anti-corrosion and wear-resisting covering.
3. Herbal tablet press adopts PLC to monitor the operating process.
4. Touch screen is applied to set and show key parameters, average pressure and all kinds of faults.
5. To prevent pollution, tablet press chamber is separated from transmission part.
Parameters of Herbal Tablet Press
| Model | PG24 |
| Dies (Sets) | 24 |
| Specification | ZP/IPT |
| Max. Pressure (Kn) | 80 |
| Max. Dia. of Tablet (mm) | 13 |
| Max. Depth of Filling (mm) | 20 |
| Max. Thickness of Tablet (mm) | 8 |
| Rotating Speed (r/min) | 38 |
| Max. Production Capacity (Pcs/hr.) | 185000 |
| Motor Power | 7.5Kw/ 380V/ 50Hz |
| Dimension of Rotary Tablet Press (mm) | 1200 × 900 × 1650 |
| Net Weight (Kg) | 2200 |
Payment, Package and Shipping
1. Types of Payment: T/T, L/T and Western Union remittance.
2. Please follow the export packing standard to package herbal tablet press.
3. Customers can choose express, ocean shipping, air transport, land transport or joint sea-and-rail transportation.
Application
Lanteky Co., Ltd. is one of the leading rotary tablet press makers that engage in manufacturing herbal tablet press and its accessories. The company owns a factory building and skilled workers of over 50. Moreover, situated near Shanghai port, our company is advantageous over other firms in convenient transportation and low delivery costs. Thus our products are popular both at home and abroad, like Europe, America, Southeast Asia, and so forth.
