Film Coating Machine
Introduction
Film coating machine is a kind of mechanical-electrical integration equipment which features high efficiency, energy conservation and cleanness. Due to different production capacity, this machine includes five models—600C, 350C, 150C, 75C and 10C. Nowadays, high efficiency tablet coating equipment is mainly applied for coating tablets, pills and candies in pharmaceutical and food industry.
Working Principle of Film Coating Machine
Under the action of streamlined guide plate stirrer, materials constantly make complex trajectory movement inside the clean enclosed rotary roller. During the process, film coating machine automatically sprays coating medium according to technological process and parameter. Meantime, high efficiency tablet coating equipment provides hot wind which is discharged from the bottom of materials, making medium dry quickly and uniformly. Finally, tablets or candies are covered with a solid and glossy thin film.
Features of Film Coating Machine
1. The control system composed of PLC and HMI is reasonable and flexible, suitable for all kinds of pharmaceutical technology. It is reliable and stable, meeting the requirement of GMP.
2. Film coating machine adopts constant pressure variable peristaltic pump, which prevents spray gun from block and is easy to clean.
3. Streamlined guide plate stirrer prevents materials from damaging and improves the rate pf finished products. And the narrow guide plate surface prevents materials from adhering to it, which saves materials and improve the quality of tablets.
4. Tablet coating equipment is of high efficiency.
5. Film coating machine can display and control the negative pressure of pot, wind speed of heating and temperature value. It can memorize and copy as well.
6. Spray gun designed and manufactured especially for coating can spray evenly and widely. And its universal adjustable nozzle is not affected by the charging amount. With a block cleaning structure, this spray gun helps save coating time and coating dressing.
Parameters of Film Coating Machine
| Model | 600C | 350C | 150C | 75C | 10C |
| Production Capacity (Kg/time) | 600 | 350 | 150 | 75 | 10 |
| Speed of Roller (rpm) | 2-10 | 2-11 | 2-15 | 4-19 | 6-30 |
| Main Motor Power (Kw) | 5.5 | 4.0 | 2.2 | 1.1 | 0.55 |
| Hot Air Temperature Range (℃) | Normal Temperature to 80℃ | ||||
| Filtration Precision of Hot Air (μm) | 0.5μm (level100,000) (μm is a unit of length, 1mm=1,000μm) (Level 100,000 refers to a rank of cleaness.) | ||||
| Motor Power of Hot Air Blower (Kw) | 5.5 | 2.2 | 1.1 | 1.1 | 0.75 |
| Motor Power of Exhaust Fan (Kw) | 15 | 7.5 | 5.5 | 3 | 2.2 |
| Motor Power of Vibrating Ash Cleaning Device (Kw) | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 |
| Motor Power of Peristaltic Pump (Kw) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 |
| Overall Dimension of Film Coating Machine (mm) | 2000 × 2240 × 2330 | 2000× 1560 × 2300 |
1570 × 1260× 2000 |
1350 × 1010 × 1630 |
1100 × 750 × 1540 |
| Weight of High Efficiency Tablet Coating Equipment (Kg) | 2500 | 1650 | 900 | 550 | 380 |
Since the establishment in 1997, Shanghai Lanteky has always committed to providing satisfactory services for clients over the world, including machine selecting, technical designing and technique training. And the company also provides customization and on-door installation services. As the company is near Shanghai Port, prompt delivery of products (film coating machine) can be ensured. Besides, our company dedicates unremittingly to innovation and renewing technology to improve quality unremittingly.

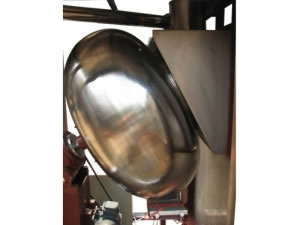

- BY Series Sugar Coating MachineSugar coating machine, just as its name suggests, is used for average coating and polishing or formed tablets and pills in pharmaceutical and food industry. Besides, this tablet coating machine can also be applied for polishing roller, fried green bean and ripe fruit and for aqueous or film ...
