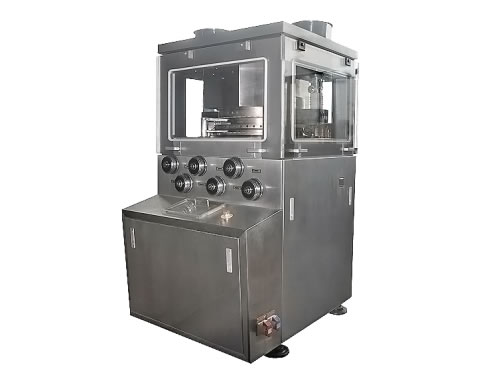

GZD260 Sub-high Speed Tablet Press

GZD260 Sub-high Speed Tablet Press

Description
GZD260 sub-high speed rotary tablet press is structured in double pressure type and can produce tablets at both sides, there it is very productive. Tablet making equipment is armed with PLC control touch screen, which can display rotating speed and set system pressure, filling depth and tablet outputs. Such tablet press is structured in double pressure type and can produce tablets at both sides. Contemporarily, sub-high speed rotary tablet press is mainly used to compress granulated things into tablets of numerous shapes and sizes.

Performance
1. GZD60 applies pre-compression force and main pressure in tabletting.
2. Overload protection device is equipped to avoid damages.
3. Data of sub-high speed rotary tablet press at work can be collected with the adoption of PLC programming device, touch screen and USB interface.
4. This tablet making equipment is installed with forced feeder that is easy to install and dismantle.
5. Safe operation is ensured by die handling protection device.
6. Sub-high speed rotary tablet press is covered with stainless steel and enclosed. All its parts are made of stainless steel material or specially treated, thus non-poisonous and anti-corrosion.

Parameters of Tablet Making Machine

Model GZD260 GZD300 GZD380
Dies (Sets) 16 20 28
Max.Output (Tablets/h) 106,000 132,000 184,000
Max.Tablet Diameter (mm) 22 16 13
Max. Filling Depth (mm) 20 16 16
Max.Tablet Thickness (mm) 8
Max. Compression Force (Kn) 80
Max.Pre-compression Force (Kn) 14
Main Motor Power (Kn) 5.5
Overall Dimensions (L × W × H)( mm) 935 × 1360 × 1785
Weight (Kg) 1,260

Payment, Package and Shipping
1. Available types of payment: T/T, L/T and Western Union.
2. Sub-high speed rotary tablet press should be packed in strict accordance with export packing standard.
3. Accepted types of shipping: expressage, ocean shipping, air parcel, land carriage, and joint sea-and-land transportation.

As an experienced pharmaceutical machines supplier, Shanghai HuaMao Co., Ltd. works hard to provide its clients with products of various kinds (sub-high speed rotary tablet press), low price and high quality. To realize these, the company sets up the factory nearby Shanghai Port, which offers convenient transportation. In addition, this superior geographical position, to great extent, enables our company to employ many personnel of expertise. Besides, effective and efficient techniques are adopted to improve outputs.
