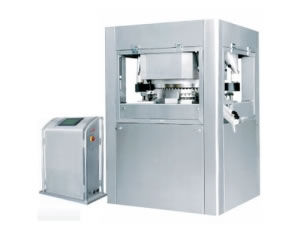

GZK730/GZL430 High Speed Tablet Press
Description

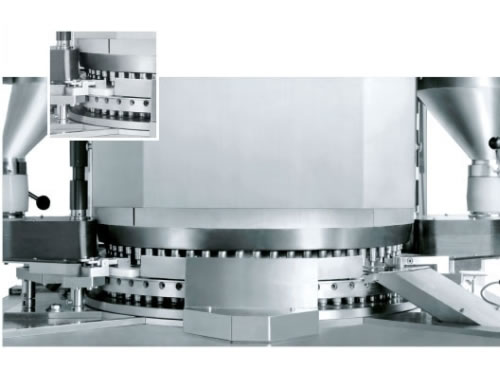

GZK730/ GZL430 multi-bin high speed tablet press is a kind of machine, which can press granular materials into round tablets. It has high productivity as showed in the following table. Such powder molding facility is equipped with a lot of effective devices to help it work efficiently and powerfully, like servo drive control system and modular roller device. Due to this, it is suitable for high-end pharmacy and health care products.
Advantages
1. GZK730/ GZL430 high speed tablet press has a structure of multi-bin type, thus easy to clean and maintain. And this structure can keep from cross contamination.
2. The adoption of modular roller device makes roller convenient to install and dismantle.
3. Powder molding facility can effectively recycle leaked powders through employing suction device.
4. As pre-compression force and main pressure are same, multi-bin high speed tablet press is able to compress various difficult molding materials.
5. It lives up to the requirements of GMP and FDA.
Parameters
These data serve as reference for you.
GZK730 High Speed Tablet Press
| Model | GZK49 | GZK61 | PG 73 | PG 79 |
| Dies (Sets) | 49 | 61 | 73 | 79 |
| Type of Dies | D | B | BB | BBS |
| Min. Output of Single-layer Tablet (Tablets/h) | 117,600 | 146,400 | 175,200 | 189,600 |
| Max. Output of Single-layer Tablet (Tablets/h) | 470,400 | 585,600 | 700,800 | 758,400 |
| Max. Dia. of Tablet (mm) | 25 | 16 | 13 | 11 |
| Max. Tablet Length (mm) | 25 | 19 | 16 | 13 |
| Max. Filling Depth (mm) | 20 | 18 | ||
| Max. Tablet Thickness (mm) | 8.5 | |||
| Max. Main Compression Force (Kn) | 100 | |||
| Max. Pre-compression Force (Kn) | 100 | |||
| Rated Power (Kw) | 16 | |||
| Power Supply | 3AC,380V / 50Hz | |||
| Bleed Pressure (MPa) | 0.6 | |||
| Overall Dimension (L × W × H) (mm) | 1730 × 1670 × 2130 | |||
| Weight (Kg) | 5,700 | |||
| Model | PG 430 | PG 360 | PG 290 |
| Dies (Sets) | 43 | 36 | 29 |
| Type of Dies | ISO19 BB | ISO19 B | ISO25.4 D |
| Max. Output (Tablets/h) | 296,000 | 248,000 | 174,000 |
| Max. Diameter (mm) | 13 | 16 | 25 |
| Max. Tablet Length (mm) | 16 | 19 | 25 |
| Max. Filling Depth (mm) | 18 | ||
| Max. Tablet Thickness (mm) | 8.5 | ||
| Max. Main Compression Force (Kn) | 100 | ||
| Max. Pre-compression Force (Kn) | 100 | ||
| Rated Power (Kw) | 10 | ||
| Power Supply | According to the requirement | ||
| Overall Dimension (L × W × H) (mm) | 1500 × 1550 × 2060 | ||
| Weight (Kg) | 3,500 | ||
Payment, Package and Shipping
1. T/T, L/T and Western Union are accepted.
2. Package should be in line with export packing standard.
3. Available shipping types: by ocean, by air, by land, or by expressage.
Shanghai HuaMao Co., Ltd. is specializing in manufacturing pharmacy machines of various types, like multi-bin high speed tablet press, grinder and so on. Since its establishment in 1997, our company has gone to great length to improve products quality and meanwhile, lower costs. Hence, we manage to bring in innovative skills and professional staff. What’s more, the company, nowadays, enriches its products to better meet the need of market. For detail knowledge, please visit our website or contact us.
