TDP-1/TDP-5 Single Punch Tablet Press

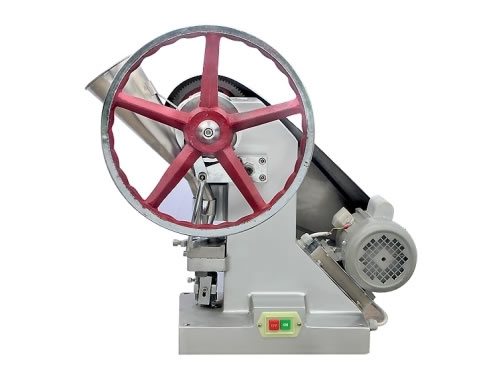

TDP-1, TDP-5 Single Punch Tablet Press Machine

Description
Single punch tablet press machine is used in laboratory exclusively, which is driven by a motor. This machine is small sized and can be applied to punching tablets of various sizes. At present, it enjoys wide application in foodstuff, pharmaceutical, chemical and electronics industry. Besides, desk-top tablet machine can press saccharine tablet, calcium tablet, special-shaped tablet, and so forth.

Advantages
Single punch tablet press machine is small and exquisite, suitable for labs and early small scale production. However, the TDP-5 type is more powerful and is able to compress large pills.

Performance
1. Single punch tablet press machine is very effective in pressing all sizes and shapes of tablets of 13 mm. The compaction force is 2.5 ton.
2. Desk-top tablet machine is also adapted for chemical and other related industries. It has one set of round punches and die installed on the machine; and changing punches and moulds are never easier.

Parameters of Single Punch Tablet Press Machine

Model TDP-5 TDP-1
Dies (Sets) 1 1
Max. Pressure (Kn) 50 25
Max. Dia. of Tablet (mm) 22 13
Max. Filling Depth (mm) 13 11
Max. Thickness of Tablet (mm) 7 6
Production Capacity (Pcs/hr)  3000 6000
Motor Power (220V/1 Phase)  1.1KW 550W
Motor Power (380V/3 Phase)  1.1KW 370W
Overall Size (mm)  600 × 500 × 700 580 × 450 × 625
Net Weight (Kg)  150 80

As an experienced tablet press maker, HMachinery has always been dedicated to innovation and development of new products. Thereby, the company now is capable of providing abundant pharmaceutical machines, for example, single punch tablet press machine. With accumulation of more than15-year service experience, this company can help clients deal with many hard-to-solve problems they encounter. Moreover, our company also provides local network service, customization and technique training.
