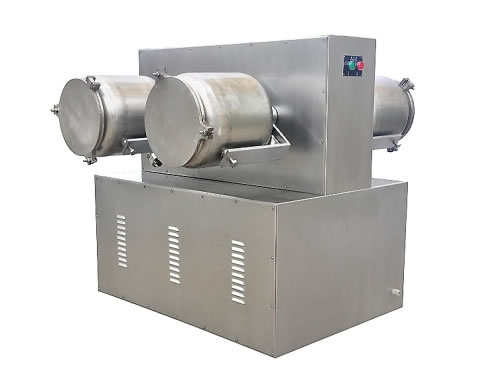

FQ120 Single Cylinder Ball Mill

FQ120 Single Jar Ball Mill

Introduction
Single cylinder ball mill is designed to be a horizontal cylindrical rotating device. It has two milling methods-dry grinding and wet milling. This mill is mainly composed of material charging part, material discharging part, rotating part, and transmission part. At present, horizontal attrition mill is applicable for materials ultrafine grinding processing in pharmacy, chemical engineering, food, scientific research, etc. Besides, single cylinder ball mill is able to mix objects of more than two kinds of powders.

Features
1. Single cylinder ball mill is made of stainless steel material, thereby anti-corrosive and wear resistant.
2. HuaMao horizontal attrition mill employs three-phase eight motor and frequency conversion speed down device.

Parameters
These data serve as reference to know about single cylinder ball mill.

Capacity of Ball Cylinder (L) 120
Grinding Fineness (Meshes) >200
Speed of Ball Mill (r/min.) 80
Working Noise (db) <65
Related Electrical Machinery Y132S-8 2.2Kw  n=710R.P.M


External Dimension (mm) 1600 × 800 × 1580
Weight of Horizontal Attrition Mill (Kg) 800

Shanghai HuaMao Co., Ltd. engages in making pharmaceutical machines like tablet press, sugar coating machine, granulator, mill (e.g. single cylinder ball mill), etc. Situated close to Shanghai Port, the company enjoys great convenience and low cost in transportation both on land and sea. And this geographical position also brings a large market and cheap labor workers. Besides, our company owns a factory. Thus our products have favorable prices and are popular over the world.
