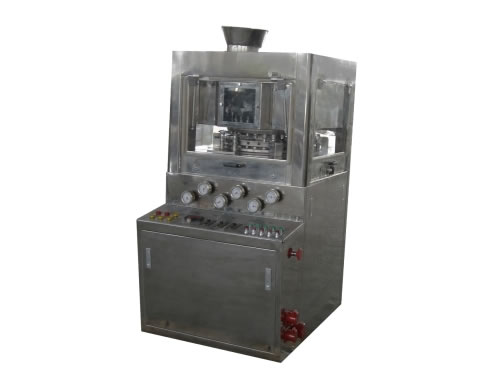

Disinfection Block Tablet Press
Description
Disinfection block tablet press has 25 set of dies, which can press 25 tablets in one revolution. Its maximum production capacity is 114000 tablets per hour. Rotary disinfectant tablet machine has two pressures and can rotate automatically. It is principally used in pharmacy, chemical, foodstuff, electronics and battery industries.
Features
1. Disinfection block tablet press is armed with overloading protection device. When the pressure overloads, the machine can stop automatically.
2. All control parts and operation units are arranged scientifically.
3. Rotary disinfectant tablet machine adopts frequency control to ensure simple operation, smooth running and accuracy.
4. Transmission apparatus is installed inside disinfection block tablet press to keep clean.
5. A clear observation of tableting is achieved through transparent glass windows.
6. The design of disinfection tablet press is in line with GMP requirement. Stainless steel is employed in its outer cover and internal tablet-board. And turret surface is specially treated. All these help disinfection tablet press to keep glossy and avoid cross pollution.
Specifications of Rotary Disinfectant Tablet Machine
| Model | ZPF25 | ZPF27 | ZPF29 |
| Dies (Sets) | 25 | 27 | 29 |
| Standard of Punches and Dies | ZP / IPT | ||
| Max. Pressure (Kn) | 80 | ||
| Max. Dia. of Tablet (mm) | 22 | 20 | 17 |
| Max. Depth of Filling (mm) | 20 | ||
| Max. Thickness of Tablet (mm) | 8 | ||
| Max. Turret Speed (r/min.) | 38 | ||
| Max. Production Capacity (Pcs/hr.) | 114000 | 123000 | 132000 |
| Motor Power | 5.5 Kw / 380V / 50Hz | ||
| Overall Size (L × W × H) (mm) | 1200 × 900 × 1650 | ||
| Net Weight (Kg) | 2200 | ||
Maintenance
1. Read the instruction book before operating disinfection block tablet press.
2. Rotary disinfectant tablet machine should be cleaned and maintained punctually.
3. Overloading running is forbidden in order not lessen its service life.
4. Refuel oil if necessary.
5. Before a trial run, disinfection tablet press should have a running-in period.
Payment, Package and Shipping
1. Accepted types of payment—T/T, L/T and Western Union.
2. Follow the export packing requirement to package disinfection block tablet press.
3. Available types of transportation: by express, by sea, by air, by land, etc.
Shanghai Lanteky specializes in making sugar coating machine, powder mixing machine, pulverizer, oven, drier and disinfection block tablet press. Founded in 1997, the company strives to better satisfy its clients by providing many services, like professional consulting. And our company also endeavors to provide local customer service. For more details, please visit the website or contact us directly.
